STM32F407VET6

STM32F407VET6 is designed and developed by STMicroelectronics. A high-performance microcontroller MCU. Employs industry-leading 32-bit flash memory with a floating-point unit. The application range is very wide, and it is one of the MCUs that are currently in short supply. For more original electronic components, please contact us! ! !

Send Inquiry    PDF DownLoad

Product Description

The STM32F407VET6 features an ARM® 32-bit Cortex®-M4 CPU with FPU, Adaptive Real-Time Accelerator (ART Accelerator™), allowing 0-wait-state execution from flash memory at frequencies up to 168 MHz. Features an Ethernet MAC and camera interface for CMOS sensors. Low power operation is divided into 3 modes sleep, stop and standby mode. Up to 24 channels and 7.2 MS PS•2×12-bit D/A converter in triple interleaved mode. In addition, the power saving mode kit is designed for low power applications. A variety of applications will be covered, including motor drives and application control, industrial applications: inverters, PLCs, scanners, HVAC, video intercoms, home audio equipment and medical equipment.



Product Features



•Memory - Up to 1 MB Flash - Up to 192+4 KB SRAM including 64 KB CCM (Core Coupled Memory) Data RAM - Supports Flexible Static Memory Controller Compact Flash, SRAM, PSRAM, NOR and NAND memory LCD parallel interface, 8080/6800 mode

•Clock, reset and power management

- 1.8 V to 3.6 V application power and I/O

- POR, PDR, PVD and BOR - 4- to 26 MHz crystal oscillator

–Internal 16 MHz factory trimmed RC (1% accuracy)

–32 kHz oscillator for RTC with calibration

–Internal 32 kHz RC with calibration function Low power operation

- Hibernate, Stop and Standby modes

- VBAT power supply for RTC, 20×32-bit backup registers + optional 4 KB backup SRAM 3×12-bit, 2.4 MSPS A/D converter: up to 24 channels and 7.2 MS PS in triple interleaved mode 2×12-bit D/A converter

•General purpose DMA: 16-stream DMA controller with FIFO and burst support

•Up to 17 timers: up to 12 16-bit timers and 2 32-bit timers up to 168 MHz, each with up to 4 I2C/OC/PWM or pulse counters and quadrature (incremental) Encoder input

•Debug mode

 - Serial Wire Debug (SWD) and JTAG interface

 - Cortex-M4 Embedded Trace Macrocell™

•Up to 140 I/O ports with interrupt capability

–Up to 136 fast I/Os up to 84 MHz

–Up to 138 5 V tolerant I/Os

•Up to 15 communication interfaces

–Up to 3 I2C interfaces (SMBus/PMBus)

–Up to 4 USARTs/2 UARTs (10.5 Mbit/s, ISO 7816 interface, LIN, IrDA, modem control)

–Up to 3 SPI (42 Mbits/s), 2 with multiplexed full duplex I2S via internal audio PLL or external clock

–2×CAN interface (2.0B active)

–SDIO interface•Advanced connectivity

–USB 2.0 Full SpeedDevice/Host/OTG Controller with On-Chip PHY

–USB 2.0 Hi-Speed/Full-SpeedDevice/Host/OTG Controller with d edicated DMA, On-Chip Full-SpeedPHY and ULPI

–10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII 8 to 14 bit parallel camera interface,



Product parameters

technical parameter

frequency

168MHz

Supply voltage (DC)

1.80V(min)

Operating Voltage

1.8V-36.V

Number of pins

100

RAM size

196KB

number of digits

32

FLASH memory capacity

512KB

Analog to Digital Conversion (ADC)

3

Number of inputs/outputs

82lnput

Working temperature (Max)

85℃

Working temperature (Min)

-40℃

Analog to Digital Conversion (DAC)

1

package

LQFP-100

Packing

Tray

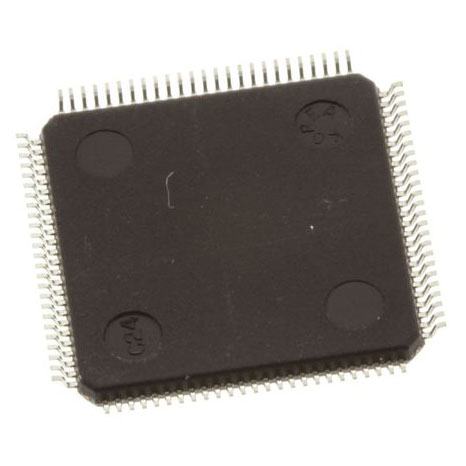

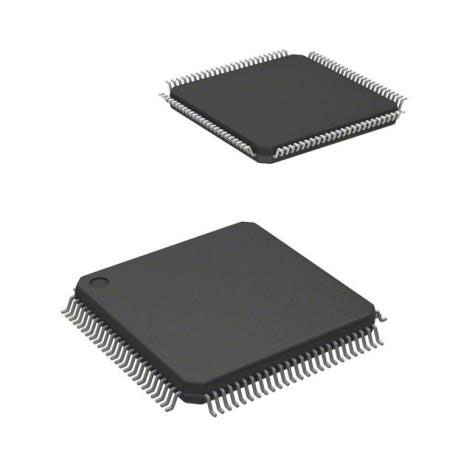

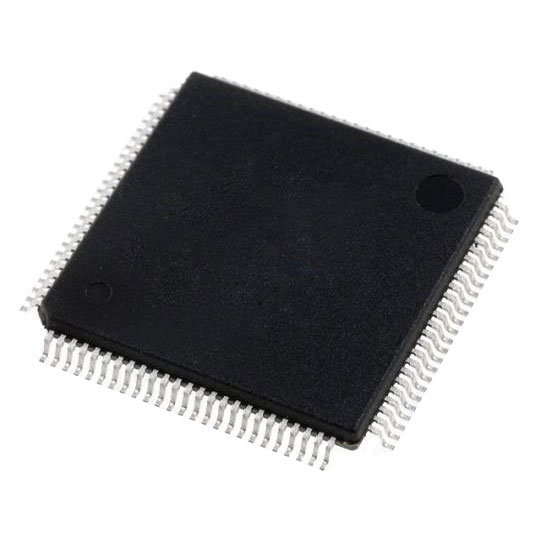

Product Image
