XT-ShenZhen has many years of experience in the electronic component supply chain industry and has a large inventory of products! The SPC563M64L5COAY device is a 32-bit Power Architecture MCU product from STMicroelectronics. This product is used in automotive powertrain applications. XT-ShenZhen introduces you the related information of SPC563M64L5COAY device, if you want to know more, please leave us a message! Looking forward to hearing from you!
XT-ShenZhen has many years of experience in the electronic component supply chain industry and has a large inventory of products! The SPC563M64L5COAY device is a 32-bit Power Architecture MCU product from STMicroelectronics. This product is used in automotive powertrain applications. XT-ShenZhen introduces you the related information of SPC563M64L5COAY device, if you want to know more, please leave us a message! Looking forward to hearing from you!
The SPC563M64L5COAY device is a 32-bit automotive microcontroller. It belongs to a family of system-on-chip (SoC) devices. The SPC563M64L5COAY device incorporates many new features and uses high performance 90 nm CMOS technology. Therefore, the functional cost of the device has been greatly reduced, and the performance has also been improved.
STMicroelectronics used Power Architecture® technology to build the advanced and cost-effective host processor core of the SPC563M64L5COAY device.
The device has an external bus interface (EBI) for "calibration". It also features a single-level memory hierarchy, including up to 94 KB of on-chip SRAM and up to 1.5 MB of internal flash.
•Single-issue, 32-bit Power Architecture®Book E compatible e200z335 CPU core complex
•32-channel direct memory access controller (DMA)
•Interrupt Controller (INTC) capable of handling 364 priority-selectable interrupt sources: 191 peripheral interrupt sources, 8 software interrupts and 165 reserved interrupts.
•Frequency Modulated Phase Locked Loop (FMPLL)
•Calibrate the External Bus Interface (EBI)1
•System Integration Unit (SIU)
- Up to 1.5 MB on-chip flash with flash controller
- Up to 94 KB of on-chip static RAM (including up to 32 KB of spare RAM)
•Boot Auxiliary Module (BAM)
•32-channel second-generation Enhanced Time Processor Unit (eTPU)
•Enhanced Queue Analog-to-Digital Converter (eQADC)
•Decimation filter (part of eQADC)
•Silicon temperature sensor
•2 Deserialized Serial Peripheral Interface (DSPI) modules (microsecond bus compatible)
|
memory size |
94KB |
|
Analog-to-Digital Conversion (ADC) |
2 |
|
Operating temperature (maximum) |
125 ℃ |
|
Operating temperature (minimum) |
-40 ℃ |
|
Voltage |
1.32 V |
|
Number of pins |
144 |
|
package |

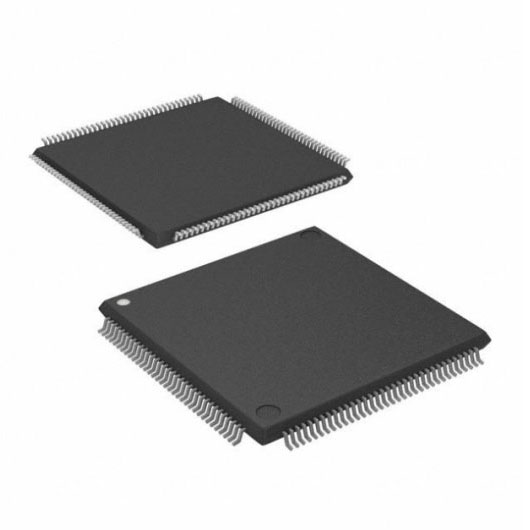

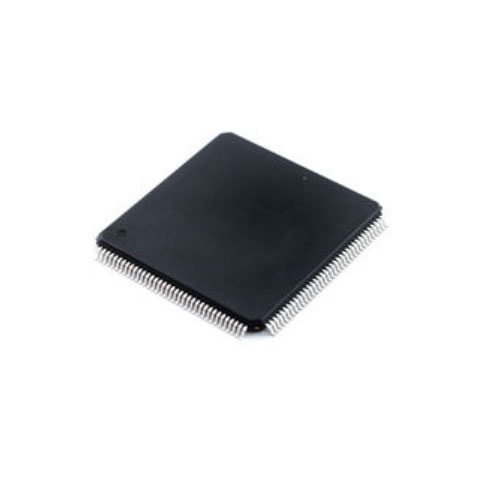

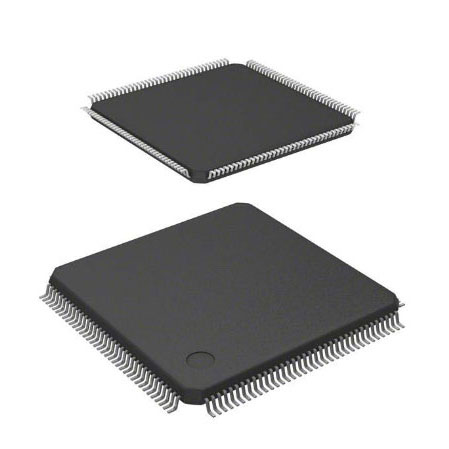

LQFP-144 |
Q: What is your main product?
A: We supply Texas Instruments components, XILINX components, MCU, IGBT and STM32F for a long time.
Q: What kind of services do you provide?
A: We provide full "one-to-one" follow-up service.
Q: Can you provide samples?
A: We can provide product samples.
